Headstages - amplipex ltd

Headstages

Back

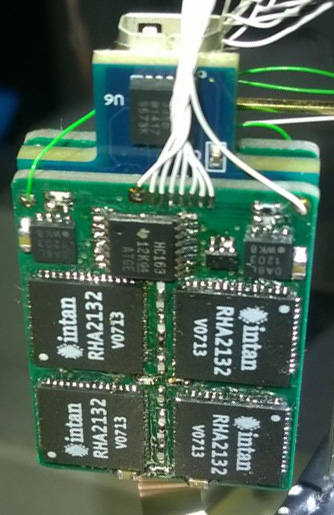

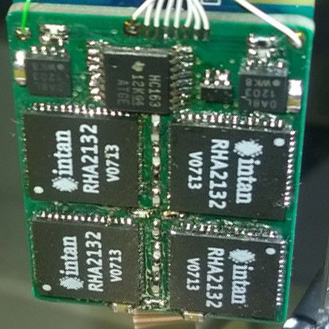

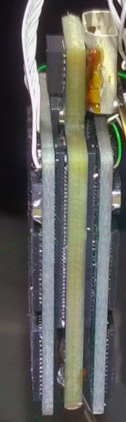

HS10 - 256 (2x128) SmartProbe Headstage

- with LED power supply
- 0.3 Hz high pass filter for each channel (custom cutoff available)
- 10 kHz low pass filter for each channel (custom cutoff available)
- Gain: 200
- Input referred noise: ~1.6 μV RMS
- Weight: 3 gr
- Size: 19x34x2 mm (Height/Width/Thickness)
- Compatible with Neuronexus SmartProbe connectors
- Suitable for freely moving experiments on rats or larger animals

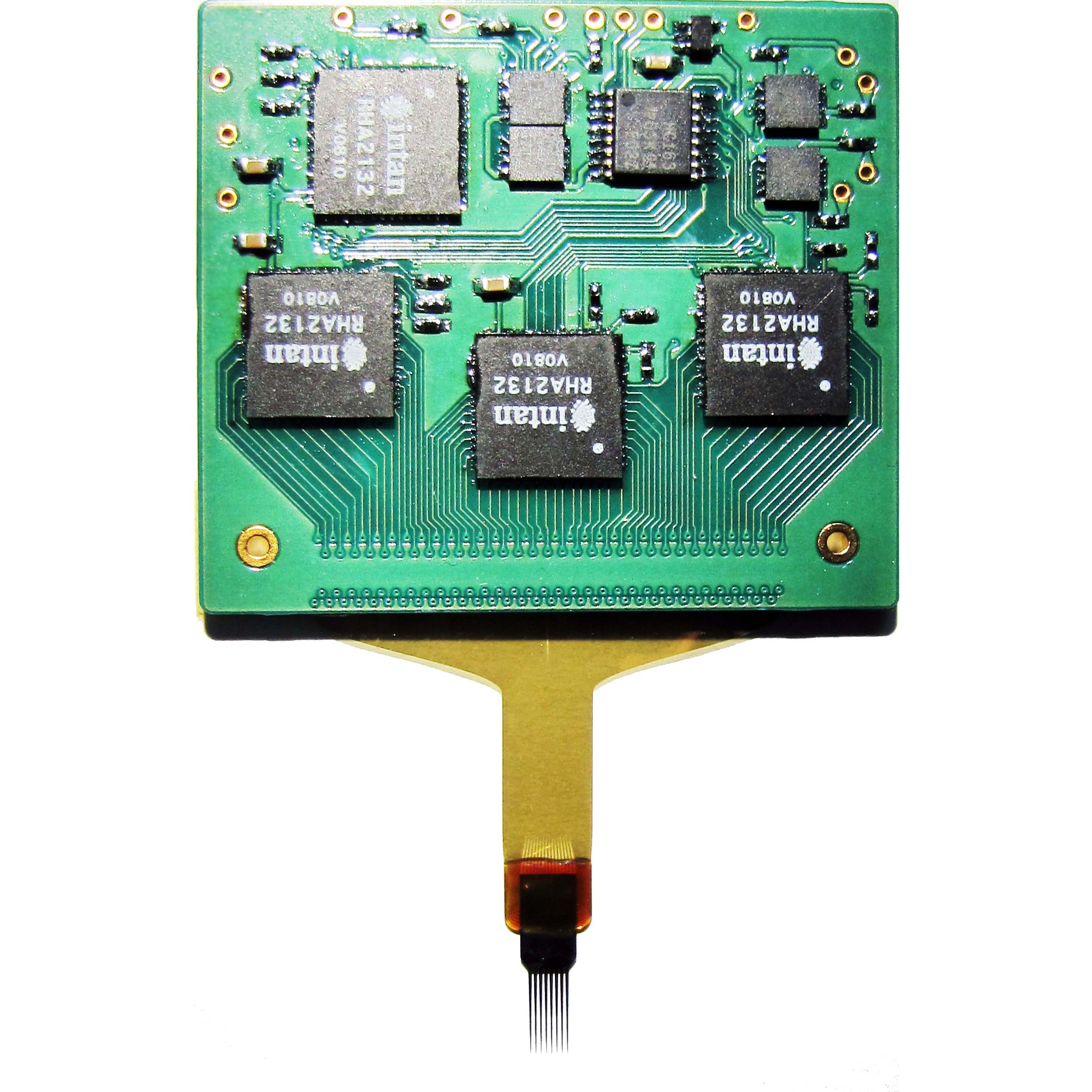

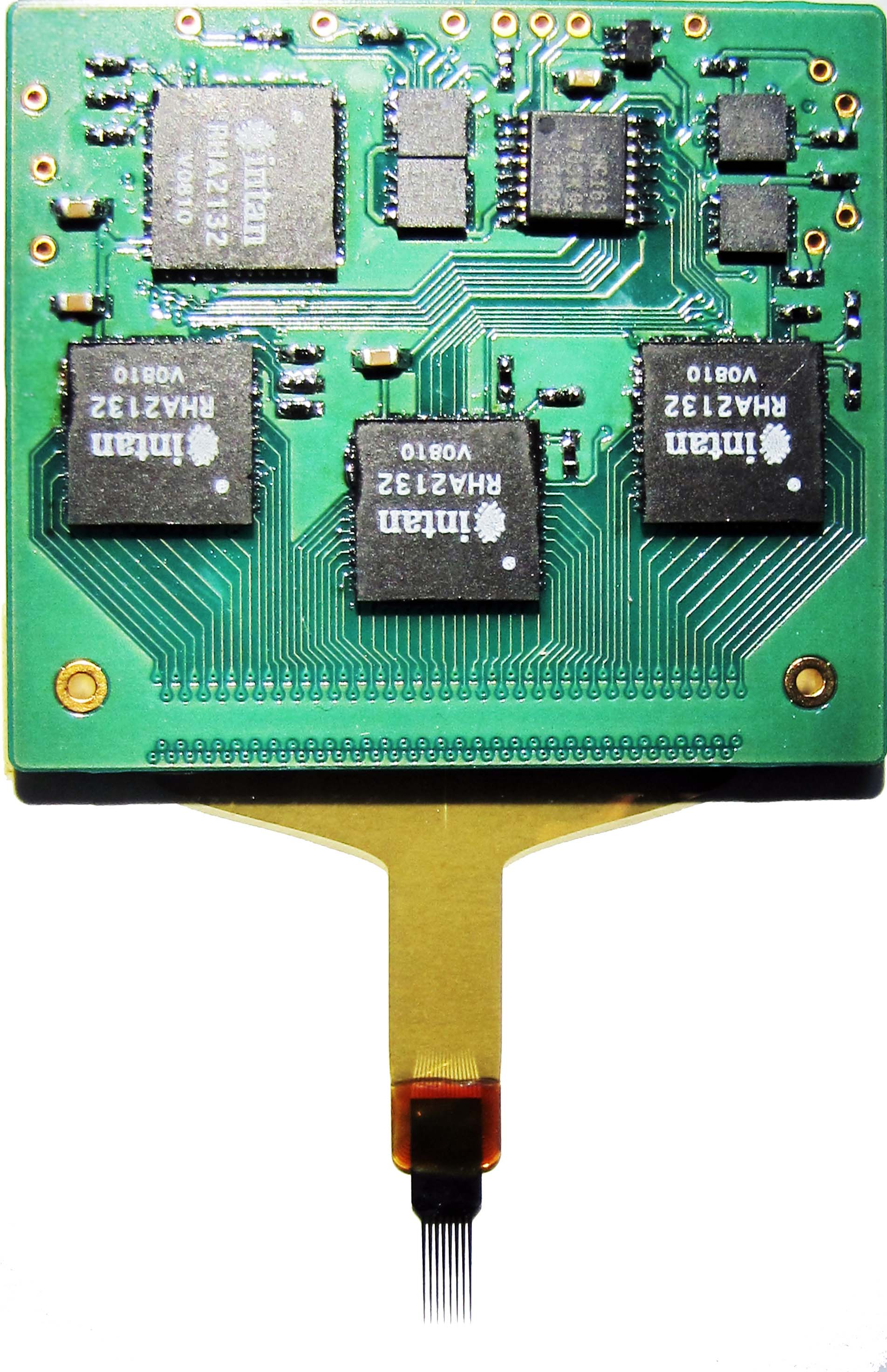

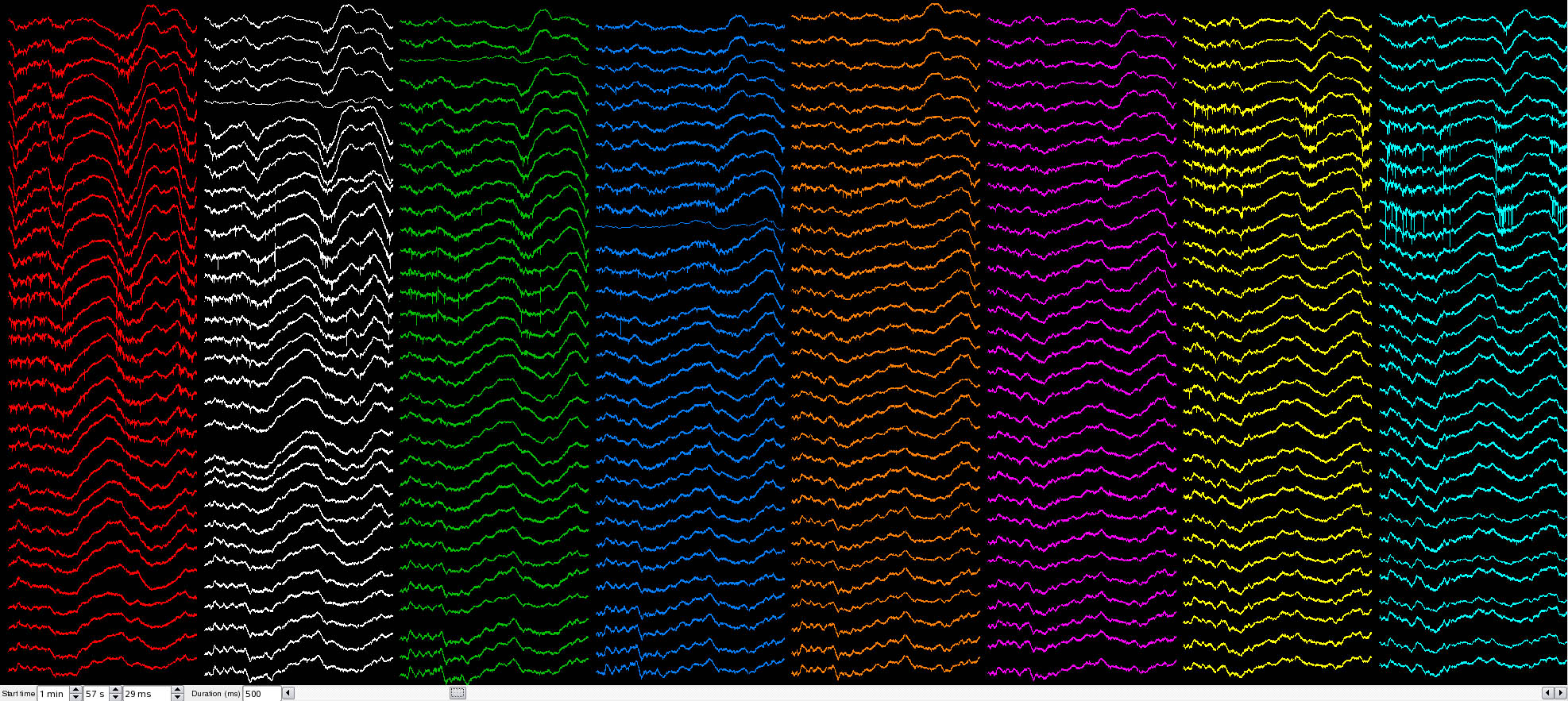

HS4 - 256 Channel multiplexed headstage

- with LED power supply
- 0.3 Hz high pass filter for each channel (custom cutoff available)
- 10 kHz low pass filter for each channel (custom cutoff available)
- Gain: 200
- Input referred noise: ~1.6 μV RMS
- Weight: 6 gr
- Size: 34x38x3 mm (Height/Width/Thickness)

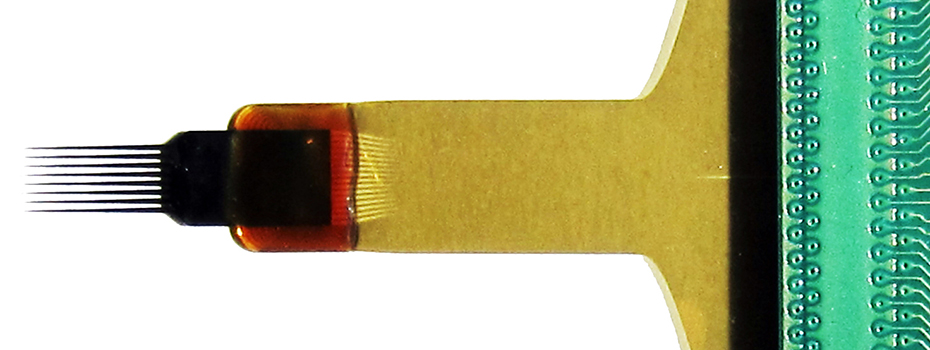

- Preassembled with 256 channel silicon probe (Neuronexus - Buzsaki 256)
- Suitable for freely moving experiments on rats or larger animals

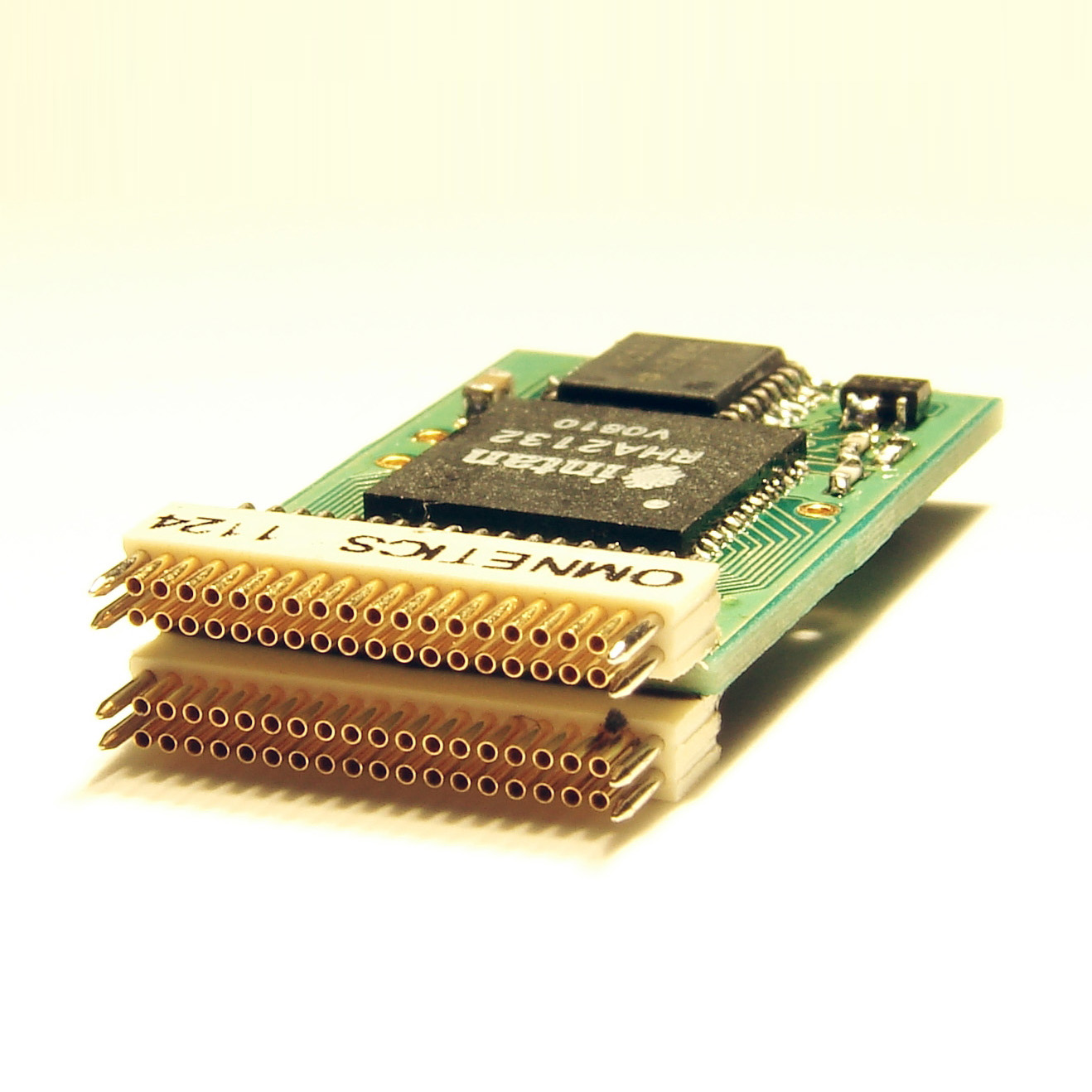

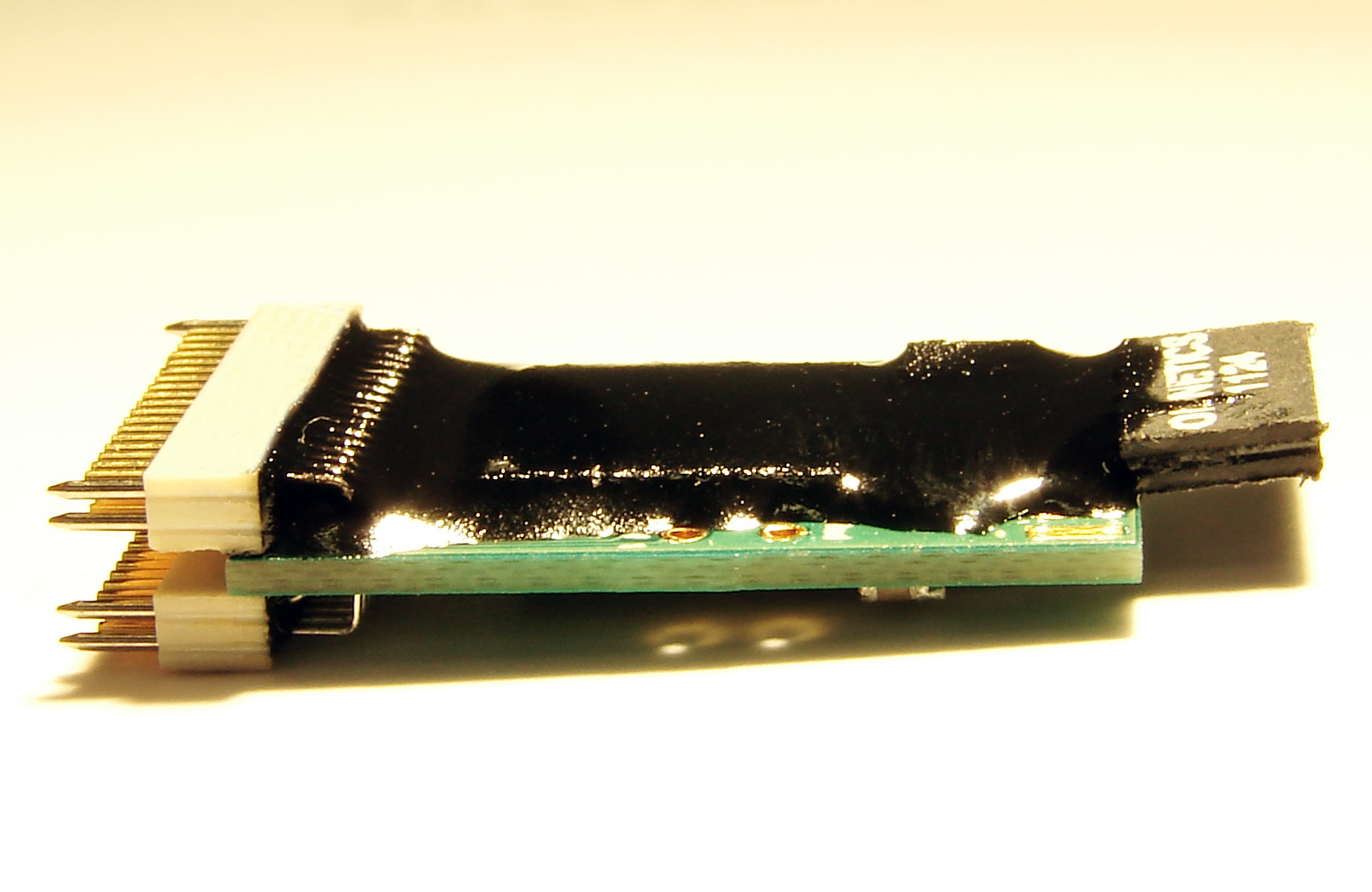

HS2 - 64 Channel multiplexed headstage

- with LED power supply
- 0.3 Hz high pass filter for each channel (custom cutoff available)
- 10 kHz low pass filter for each channel (custom cutoff available)
- Gain: 200
- Input referred noise: ~1.5 μV RMS
- Weight: 2.3 gr
- Size: 19x13x3 mm (Height/Width/Thickness)

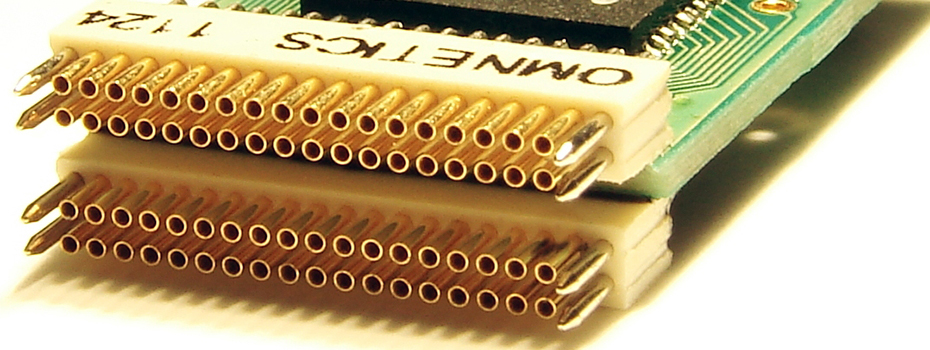

- Electrode side connector mates with: Omnetics NPD-36-DD-GS (36 connectors + 4 guide posts)

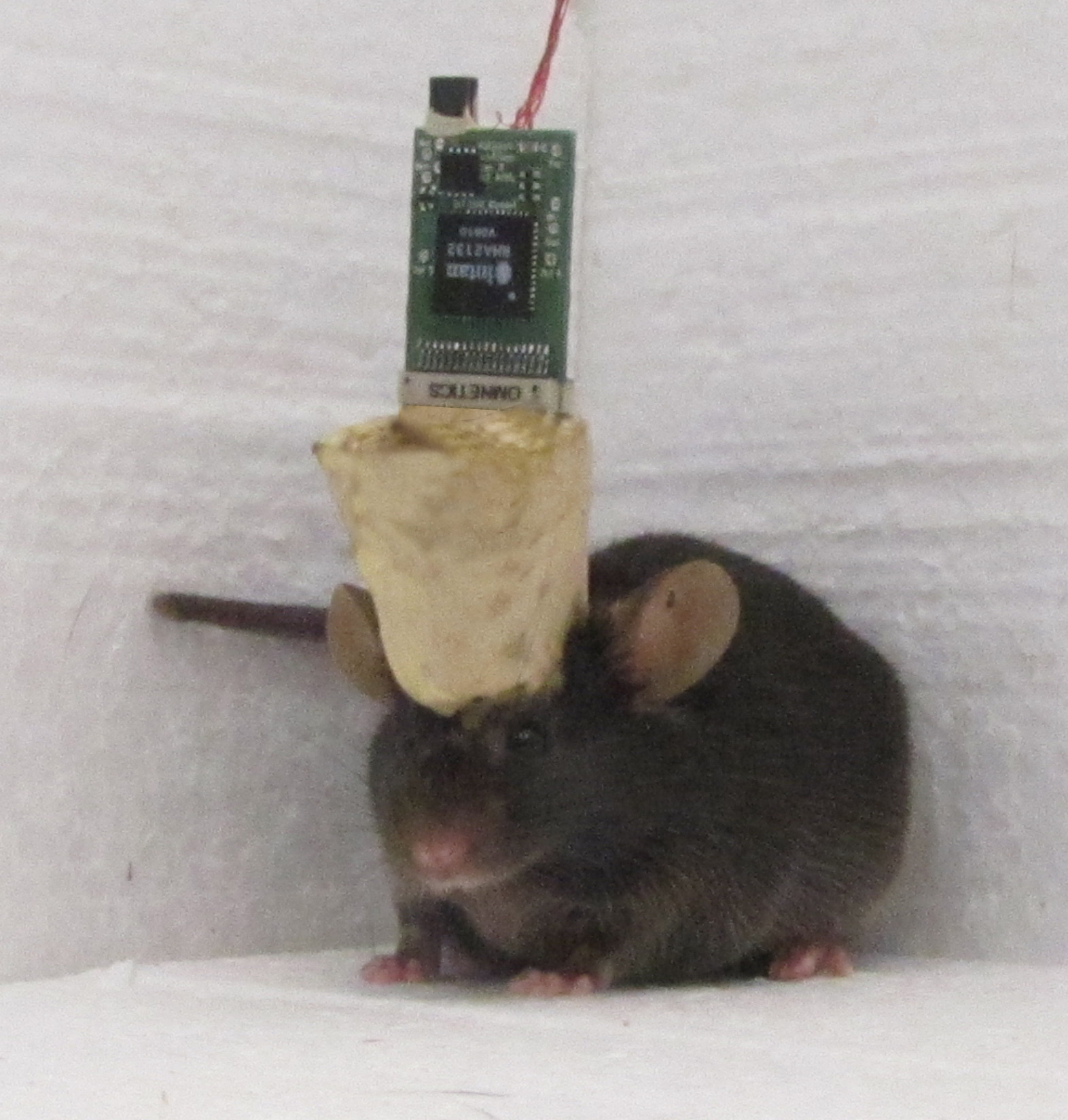

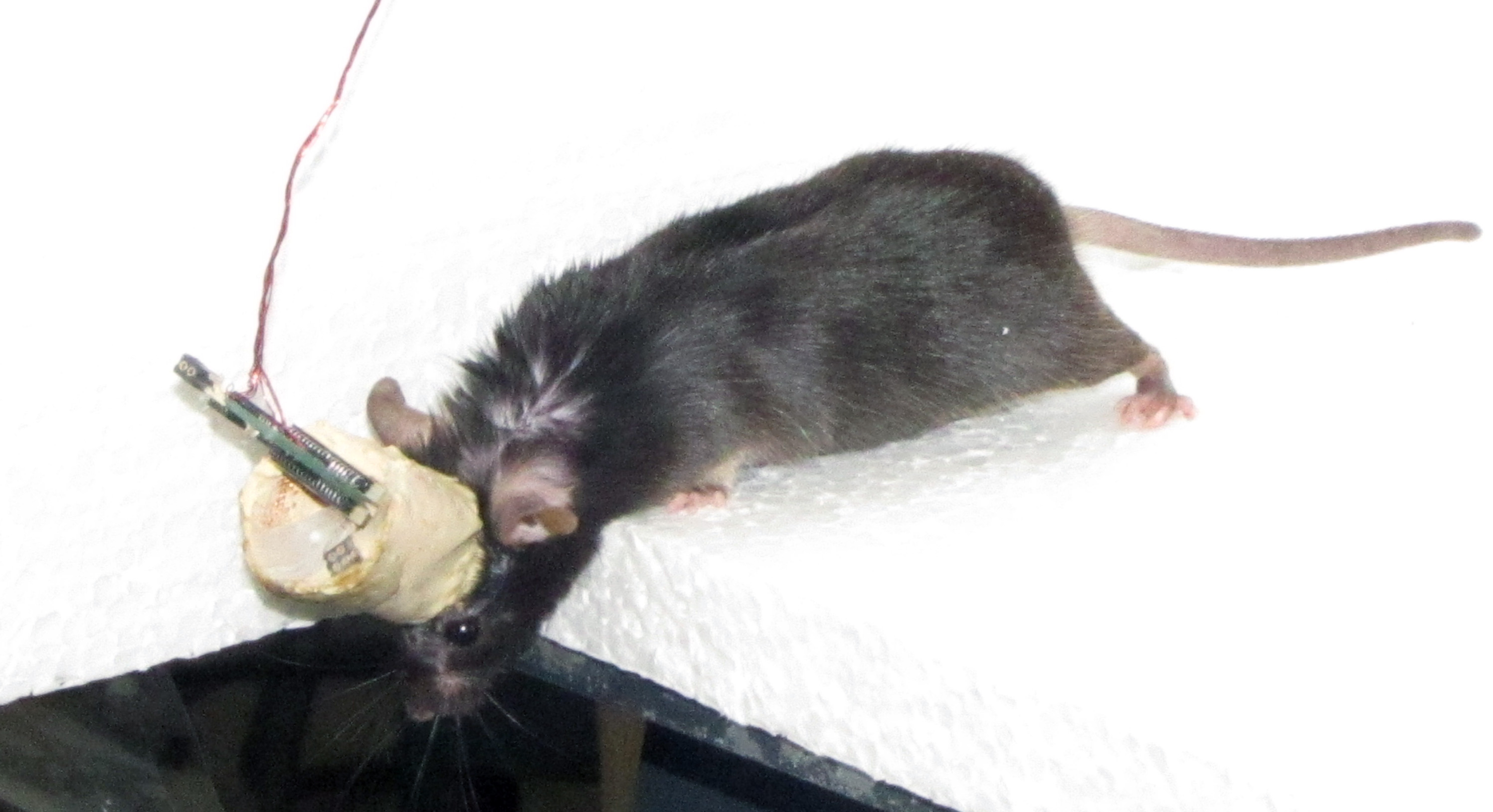

- Suitable for freely moving experiments on mice or larger animals

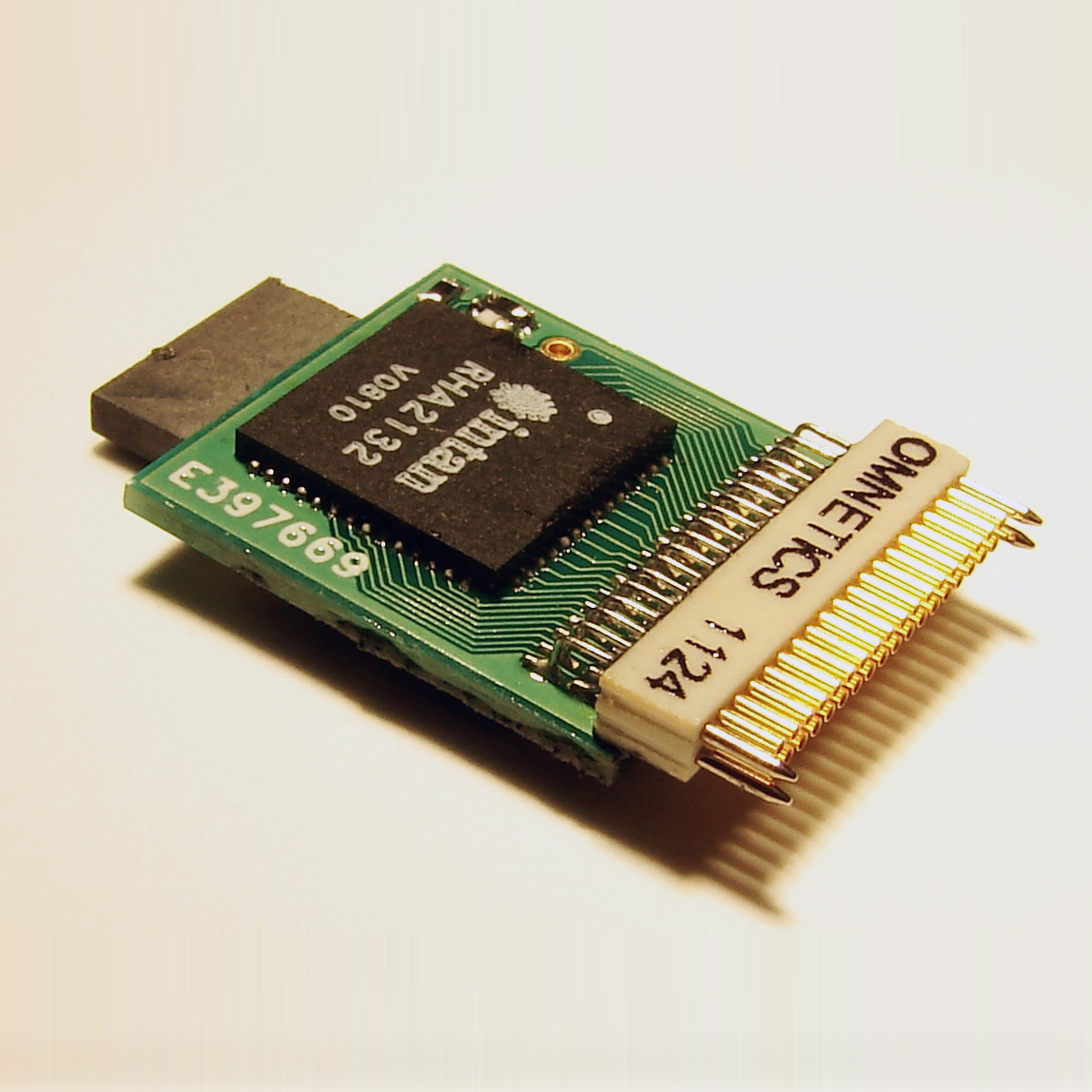

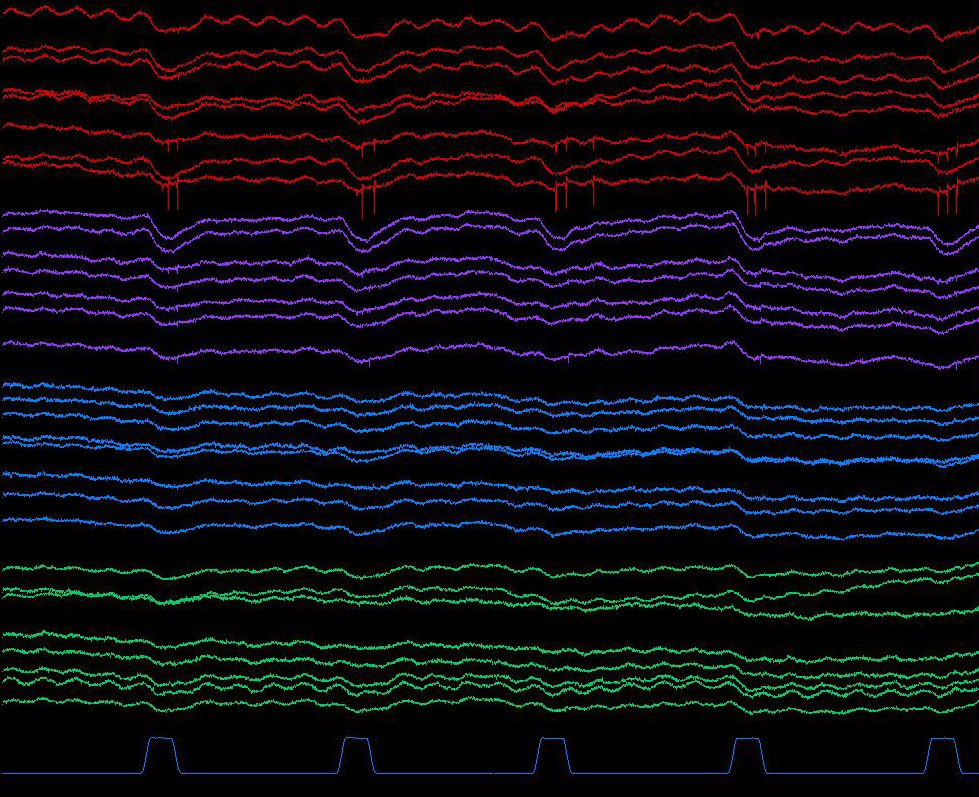

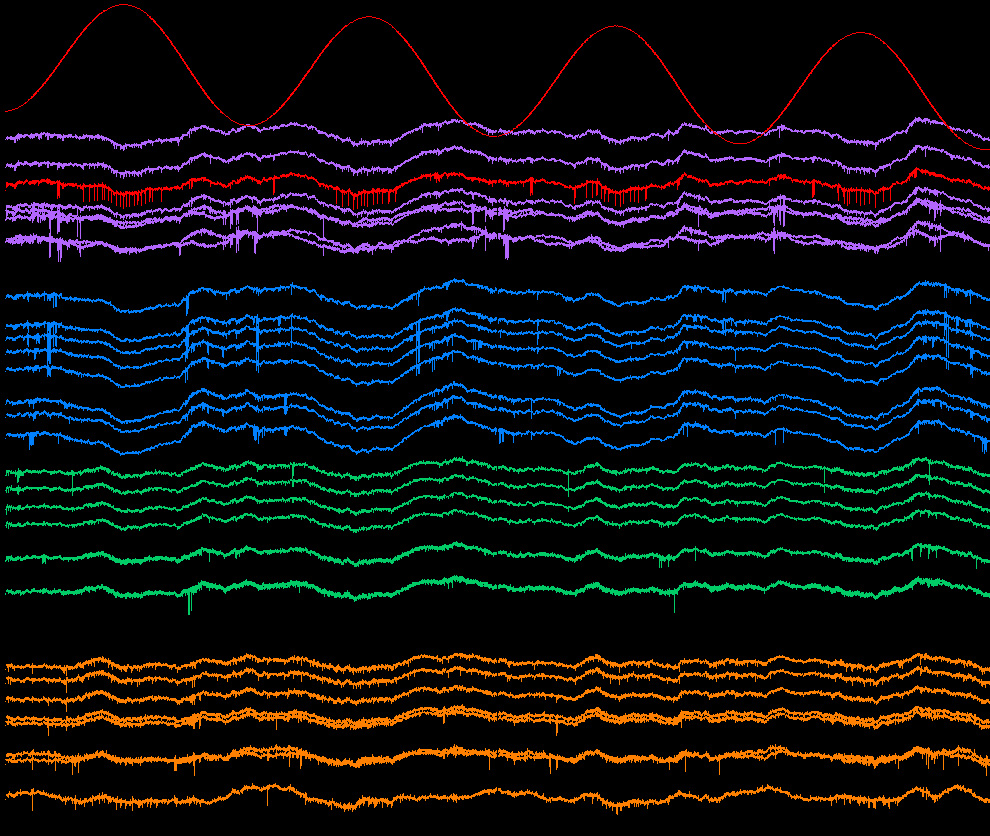

HS3 - 32 Channel multiplexed headstage

- with LED power supply
- 0.3 Hz high pass filter for each channel (custom cutoff available)
- 10 kHz low pass filter for each channel (custom cutoff available)
- Gain: 200
- Input referred noise: ~1.5 μV RMS
- Weight: 1.9 gr
- Size: 14x13x3 mm (Height/Width/Thickness)
- Electrode side connector mates with: Omnetics NPD-36-DD-GS (36 connectors + 4 guide posts)
- Suitable for freely moving experiments on mice or larger animals

HS7 - 16 Channel multiplexed headstage

- with LED power supply
- 0.3 Hz high pass filter for each channel (custom cutoff available)
- 10 kHz low pass filter for each channel (custom cutoff available)
- Gain: 200
- Sampling rate multiplier (2x) for better temporal resolution
- Input referred noise: ~1.5 μV RMS
- Weight: 1.7 gr
- Size: 14x13x3 mm (Height/Width/Thickness)
- Electrode side connector mates with: Omnetics NPD-18-DD-GS (18 connectors + 6 guide posts)
- Suitable for freely moving experiments on mice or larger animals
